Demo build log — .NET (UnclaimedProperty.com)

What this is. A write-up of the ASP.NET Core / Razor build of the UnclaimedProperty.com waitlist page, consuming the framework-agnostic web components (@kofile/gds-wc) as drop-in HTML. This is the reference implementation — its markup and token-aligned site.css were the blueprint the React and Vue demos were built from. The app lives at examples/dotnet-unclaimed-property.

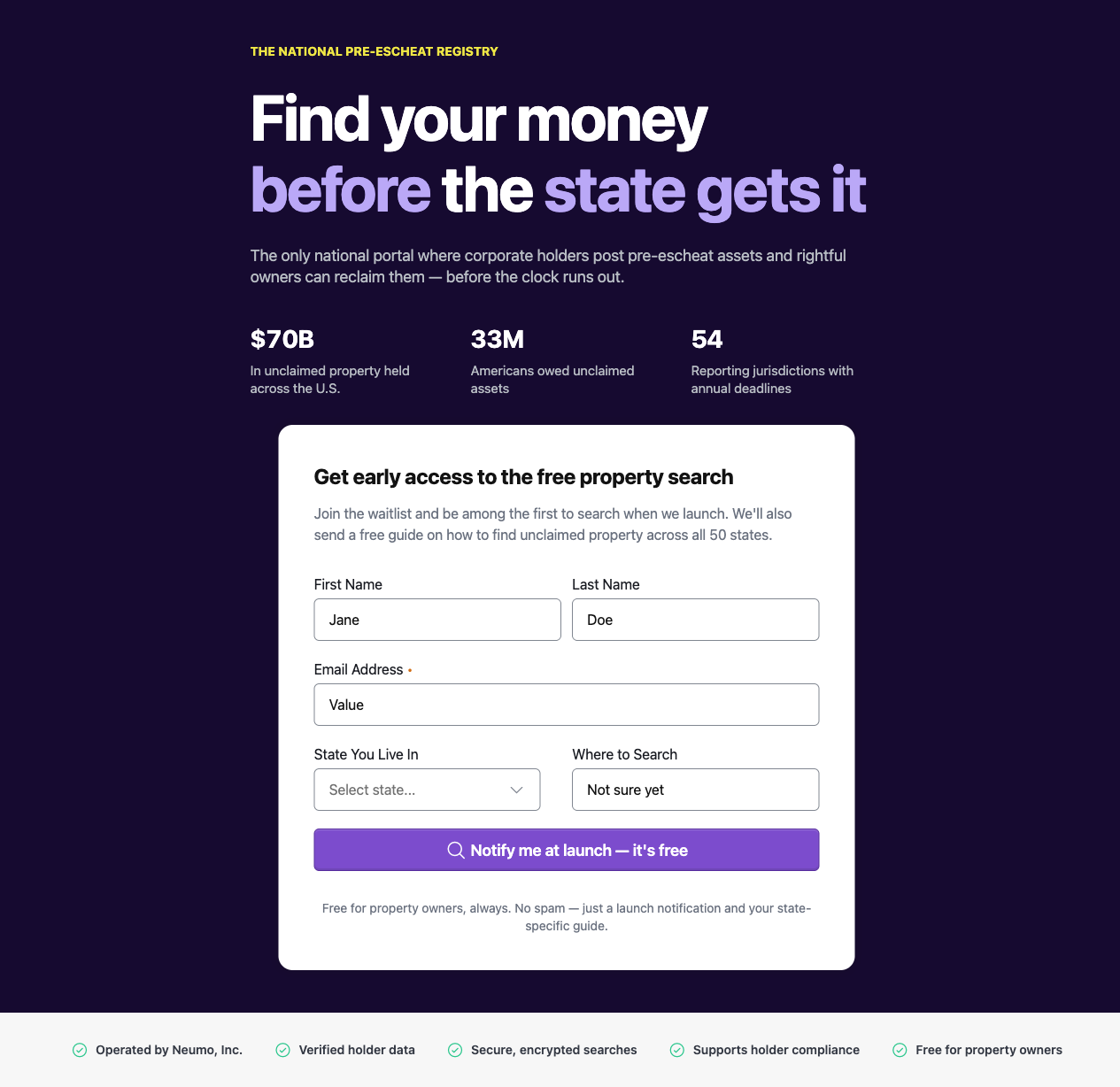

▶ View the live demo — a static snapshot of the rendered page (see Hosting).

The setup

Because .NET consumes the same <neumo-*> web components as the Vue demo, this build is the canonical "web components in a server-rendered app" path.

Source files (browse on GitHub) — Pages/Index.cshtml (markup) · Pages/Shared/_Layout.cshtml (CDN/self-hosted switch) · wwwroot/css/site.css (token-aligned styles) · wwwroot/js/site.js (wiring the components to the API) · vendor-assets.sh (self-hosting) · compare/ (parity harness) · README.md (run + teaching guide)

Step 1 — Consuming the web components in Razor

The components are just custom elements, so the .cshtml markup is plain HTML — no framework binding layer. The key patterns:

<neumo-label for="email">Email Address</neumo-label>
<neumo-input id="email" type="email" data-size="xl" data-alt-background></neumo-input>

<neumo-select id="state" data-size="xl" placeholder="Select state...">
  <neumo-option value="CA">California</neumo-option>
</neumo-select>

<neumo-button id="submit" data-variant="primary" data-size="xl">
  <i slot="icon-start" class="ph ph-magnifying-glass"></i>
  Notify me at launch
</neumo-button>

wwwroot/js/site.js wires them to the mock API, and documents the three things a web-component consumer needs to know (identical to the Vue findings):

• A web component is a DOM element — read its value with element.value.
• <neumo-select> reads its menu from an options property, not the <neumo-option> children — site.js maps the declarative markup into select.options once the element upgrades.
• <neumo-button> doesn't submit a form — it emits neumo-button-click; site.js listens for that and POSTs to /api/waitlist with the CSRF token.

It also carries a documented accessibility shim: <neumo-label for> can't focus an input inside shadow DOM, so site.js forwards label clicks to the real focusable element and adds aria-labels — the same gap the a11y-audit and Vue demos flagged.

Step 2 — Two delivery modes (and a post-privatization finding)

_Layout.cshtml loads the design system one of two ways, flipped by DesignSystem:Source:

• cdn — <script> / <link> to public CDNs (zero build; nice for a quick demo).
• local — the self-hosted copies in wwwroot/lib (vendored by vendor-assets.sh: esbuild-bundles gds-wc with Lit inlined, copies the branded token CSS + Phosphor). For offline / strict-CSP / production.

Finding — CDN mode broke when the packages went private. The cdn path pulls @kofile/gds-wc / @kofile/gds-foundations from esm.sh / jsDelivr, which can't serve private npm packages — so post-privatization the self-hosted (local) mode is the working path. This is worth calling out in the demo: for private design systems, vendor the assets (vendor-assets.sh) rather than relying on public CDNs. (The public Font/Phosphor CDNs still work.)

Self-hosting the design system — step by step

This is the real path for a private design system (and it's exactly what the hosted live demo above is built from). It vendors the design system into wwwroot/lib so the app serves everything itself — no external requests, CSP-friendly, offline-capable.

1. Authenticate to npm. The @kofile/* packages are private, so the vendor step needs a one-time token: npm config set //registry.npmjs.org/:_authToken=PASTE_TOKEN_HERE (full walkthrough: the npm access token guide).
2. Vendor the assets — run ./vendor-assets.sh. It:
   • esbuild-bundles @kofile/gds-wc with Lit inlined → wwwroot/lib/gds-wc.js (one self-contained ESM file, no bare imports),
   • npm packs @kofile/gds-foundations and copies the branded theme → wwwroot/lib/gds-foundations.branded.css,
   • npm packs @phosphor-icons/web and copies the regular weight + fonts → wwwroot/lib/phosphor/. Versions are pinned at the top of the script (treat them like NuGet versions).
3. Switch to local mode — set DesignSystem:Source=local in appsettings.json, or DesignSystem__Source=local as an env var. _Layout.cshtml then emits <link> / <script> tags at the wwwroot/lib paths instead of the CDNs. The page markup doesn't change — only the asset origin does.
4. Commit wwwroot/lib — check the vendored files into source control so builds are reproducible and need no npm/network at deploy time.
5. Run — dotnet run. Confirm in devtools that the design-system assets load from your own origin and there are no external requests.

The GitHub-Pages live demo above is this local-mode output captured as static files — so the snapshot doubles as proof the self-hosted bundle runs standalone.

Step 3 — Token alignment

wwwroot/css/site.css is fully token-driven — its own header says "every value mapped 1:1 from the Figma design to its design-system token; no raw hex, no magic pixels except the two one-offs the design hard-codes (card radius 16px, card padding 40px)." It's the stylesheet the React and Vue demos ported, so the same neumo-MCP passes apply: audit-tokens (color), audit-spacing, and typography verified against the token ramp. The one design-vs-component delta is the <neumo-input data-alt-background> gray fill, which doesn't render (the component doesn't propagate the mode) — the same gap noted in the Vue build.

Step 4 — Figma↔Playwright parity harness

Unlike React/Vue, this demo ships a parity harness (compare/screenshot.mjs, compare/verify.mjs, compare/compose-casestudy.mjs, output in .design-compare/): it screenshots the running app with Playwright and diffs it against the Figma target (figma-target-full.png vs rendered-full.png), and verify.mjs even caught the label-focus shadow-DOM issue that drove the a11y shim. Reusable idea worth lifting into the other demos.

Hosting a static snapshot

The docs site is static (GitHub Pages), so the real ASP.NET server (with its /api/waitlist backend + CSRF) can't run there. To still give a clickable live link next to React/Vue, the demo hosts a static snapshot:

1. Run the app once in self-hosted (local) mode so every asset is same-origin (wwwroot/lib).
2. Capture the pristine server-rendered HTML; rewrite its absolute asset paths to relative (subpath-safe under /demos/dotnet/app/); add the Source Sans webfont.
3. Mock the API with a tiny fetch shim so the real site.js code path (validation → loading → success) runs against a stubbed 201 — the form works without a backend, exactly like the React/Vue static demos.
4. Commit the snapshot (examples/dotnet-unclaimed-property/static-snapshot/) and copy it into the site at build time.

It's a frozen render, not the live server — the write-up above is the server story; the snapshot is the visual + client-side interactivity. For the real thing, run the container/app locally (README).

Where the MCP server + Figma toolkit show up

• Figma toolkit — read the frame as the visual target (shared across all three demos); the parity harness screenshots the running app and diffs it against the Figma export.
• neumo MCP server — the site.css token alignment (audit-tokens / audit-spacing / typography), inherited by React and Vue as the blueprint.
